CHNSpec Technology （Zhejiang）Co.,Ltd chnspec@colorspec.cn 86--13732210605
製品詳細
起源の場所: 中国
ブランド名: CHNSpec
証明: CE
モデル番号: DS-820シリーズ
支払及び船積みの言葉
最小注文数量: 1
価格: 交渉可能
パッケージの詳細: カートンボックス
受渡し時間: 5-7日
支払条件: T/T
供給の能力: 1ヶ月あたりの1000
波長範囲: |
360nm～780nm |
波長間隔: |
10nm |
証券間協定: |
XLAV ΔE*ab 0.25 |
観察者: |
2°および10°の標準観測者 |
波長範囲: |
360nm～780nm |
波長間隔: |
10nm |
証券間協定: |
XLAV ΔE*ab 0.25 |
観察者: |
2°および10°の標準観測者 |

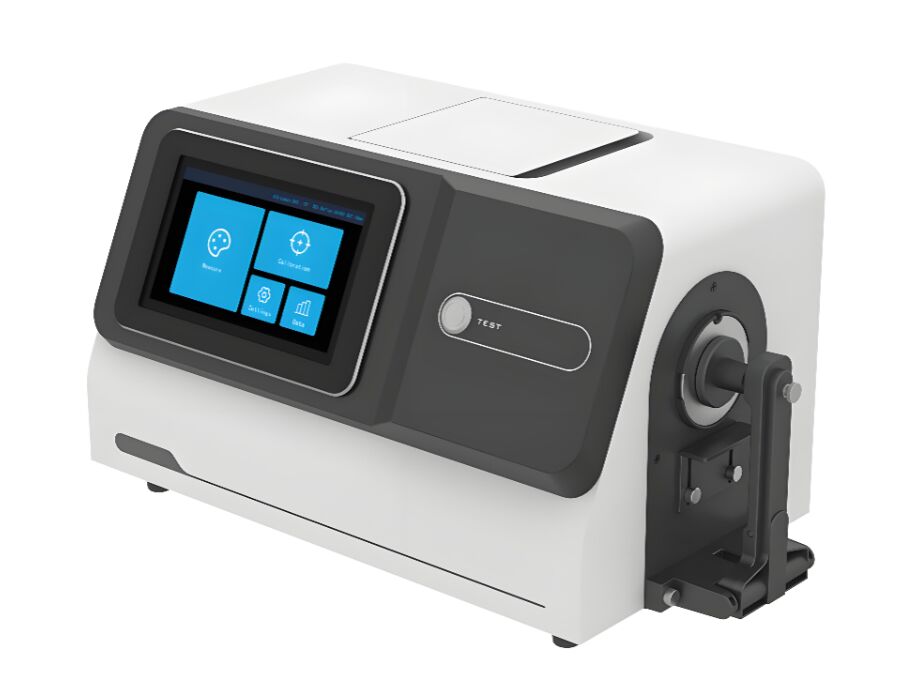

CHNSpec DS-820 Series is a high-precision bench-top spectrophotometer. It covers a measurement wavelength range of 360nm–780nm, featuring a repeatability of ΔE*ab≤0.02 and an inter-instrument agreement of ΔE*ab 0.25, ensuring stable and accurate measurements. Equipped with a 7-inch touchscreen, automatic aperture recognition, high-definition camera positioning, and a damped measurement handle, the instrument is designed for ease of use. It is capable of measuring a wide variety of materials, including large samples, plastics, powders, liquids, yarns, and printed materials. The product complies with numerous international standards and, when paired with its extensive accessories and professional software, is ideal for rigorous color quality inspection and laboratory analysis.
Performance Specifications
| Model | DS-808 | DS-820 |
| Illumination/Viewing System | SCI/SCE simultaneous measurement. Complies with: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164 | SCI/SCE simultaneous measurement. Complies with: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, DIN5033 Teil7, JIS Z8722 Condition C, ASTM E1164, ASTM-D1003-07 |
| / | Transmission: d/0 (Diffused illumination, vertical viewing) | |
| Sensor | Silicon Photodiode Array (Dual 16 groups) | Dual-row high-precision CMOS array sensor |
|
Spectroscopic Method |
Nano-integrated spectral device | Concave grating |
|
Integrating Sphere Dia. |
152mm | |
|
Wavelength Range |
400-700nm | 360nm-780nm |
|
Wavelength Interval |
10nm | |
|
Spectral Resolution |
/ | 10nm |
|
Reflectance Range |
0–200%, Resolution 0.01% |
|
| Light Source | Full-band balanced LED + UV LED | Pulsed Xenon Lamp + LED |
|
UV Measurement |
Includes UV, 400nm cut-off | Includes UV, 400nm/420nm/460nm cut-off |
|
Measurement Time |
Single mode < 2s | |
|
Measurement/Illumination Aperture |
Reflection: XLAV Φ25.4/30mm, LAV Φ15/18mm, MAV Φ8/11mm, SAV Φ3/6mm (Auto-recognition) |
Reflection: XLAV Φ25.4/30mm, LAV Φ15/18mm, MAV Φ 8/11mm, SAV Φ3/6mm (Auto-recognition) |
| / | Transmission: Φ17mm/Φ25mm | |
|
Transmission Measurement Specifications |
/ |
Sample Height and Thickness: Height is unrestricted; thickness ≤ 50 mm (width is restricted). |
|
Long-term Repeatability |
XLAV Chromaticity Value: Standard Deviation ΔE*ab within 0.03 (measured hourly over a 24-hour period on a white calibration plate, under any temperature fluctuation within 20°C ± 10°C) |
XLAV Chromaticity Value: Standard deviation ΔE*ab within 0.02 (measured hourly over a 24-hour period on a white calibration plate, under any temperature fluctuation within 20° C ± 10°C) |
| Repeatability※ |
ΔE*ab ≤ 0.03 (Standard Deviation); Spectral Reflectance/Transmittance ≤ 0.1% |
ΔE*ab ≤ 0.02 (Standard Deviation); Spectral Reflectance/Transmittance ≤ 0.1% |
|
Inter- instrument Agreement ※ ※ |
XLAV ΔE*ab 0.4 | XLAV ΔE*ab 0.25 |
| Observer | 2° and 10° Standard Observer | |
| Illuminant | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2, LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 | |
| Language | Simplified Chinese, English | |
|
Display Content |
Spectral data, spectral graph, color difference data, Pass/Fail judgment, simulated color, color bias |
Spectral data, spectral graph, chromaticity data, color difference data, Pass/Fail judgment, simulated color, haze, liquid chromaticity, color bias |
| Color Spaces | CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,RGB,βxy | CIE LAB,CIE LUV,LCh,Hunter Lab,Yxy,XYZ,Musell,s-RGB,βxy |
|
Colorimetric Indices |
WI, YI, Tint, Metamerism Index, Staining Fastness, Color Change Fastness, ISO Brightness, R457, Densities (A, T, E, M), Opacity, Strength, Blackness, ITA°, HSB, HSL, LRV |
WI (ASTM E313-20, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube, Berger Stensby), YI (ASTM D1925, ASTM E313-20, ASTM E313-73), Tint (ASTM E313-20), Metamerism Index Milm, Staining Fastness, Color Change Fastness, ISO Brightness, R457, Density (A, T, E, M), Opacity, Dye Force, Strength, Blackness (My, dM), ITA°, HSB, HSL, LRV, APHA/Hazen/Pt-Co (Platinum-Cobalt Index), Gardner (Gardner Index), Saybolt (Saybolt Index), ASTM Color, Haze Total Transmittance, Opacity, Dye Force, Strength, Blackness (My, dM)
|
|
Color Difference Formula |
ΔE*ab,ΔE*CH,ΔE*uv,ΔE*cmc,ΔE*94,ΔE*00,ΔEab(Hunter),555 Shade Sorting | |
| Storage | 10,000 data sets | |
| Screen Size | 7-inch capacitive touchscreen | |
| Power Supply | 24V / 2.5A | |
|
Operating Temperature & Humidity |
5–40°C, relative humidity below 80% (at 35°C), non-condensing | |
|
Storage Temperature & Humidity |
-20–45°C, relative humidity below 80% (at 35°C), non-condensing | |
|
Standard Accessories |
Power Adapter, Data Cable, USB Flash Drive (Software included), Black Cavity, White Board, Aperture Plates (30mm/18mm/11mm/6mm), Support Stand, Damping Handle |
Power Adapter, Data Cable, Transmission Fixture, USB Flash Drive (with Management Software), Black Calibration Cavity, White Calibration Board, Aperture Plates (30mm, 18mm, 11mm, 6mm), Support Stand, Cuvette, Damping Handle |
|
Optional Accessories |
Vertical Stand, Pneumatic Jack (with control circuit), Small Sample Fixture, Fiber Test Box, Trolley Case, EU Plug, US Plug |
Vertical Stand, Pneumatic Jack (including control circuit), Small Sample Fixture, Film Fixture, Fiber Test Box, Reflectance Cuvette Holder, Micro Transmission Fixture, Trolley Case, EU Plug, US Plug |
| Interface | RS-232,USB-A,USB-B | |
| Others |
1. Camera Viewfinder for Positioning 2. Support for sideways, upward, and downward measurement (with accessories) 3. Automatic Temperature and Humidity Compensation |
|
※ Standard deviation of the white calibration tile measured 30 times at 5-second intervals using XLAV aperture after instrument calibration
※※ Average values of 12 BCRA Series color tiles measured using XLAV aperture at 23°C
