CHNSpec Technology （Zhejiang）Co.,Ltd chnspec@colorspec.cn 86--13732210605
製品詳細
起源の場所: 中国
ブランド名: CHNSpec
証明: CE
モデル番号: FS-27
支払及び船積みの言葉
最小注文数量: 1
価格: 交渉可能
パッケージの詳細: カートンボックス
受渡し時間: 5-7日
支払条件: T/T
供給の能力: 1ヶ月あたりの1000
画像解像度: |
1280*1280 |
スペクトル範囲: |
900-1700nm |
ピクセルサイズ: |
5um*5um |
ダイナミックレンジ: |
12ビット |
画像解像度: |
1280*1280 |
スペクトル範囲: |
900-1700nm |
ピクセルサイズ: |
5um*5um |
ダイナミックレンジ: |
12ビット |

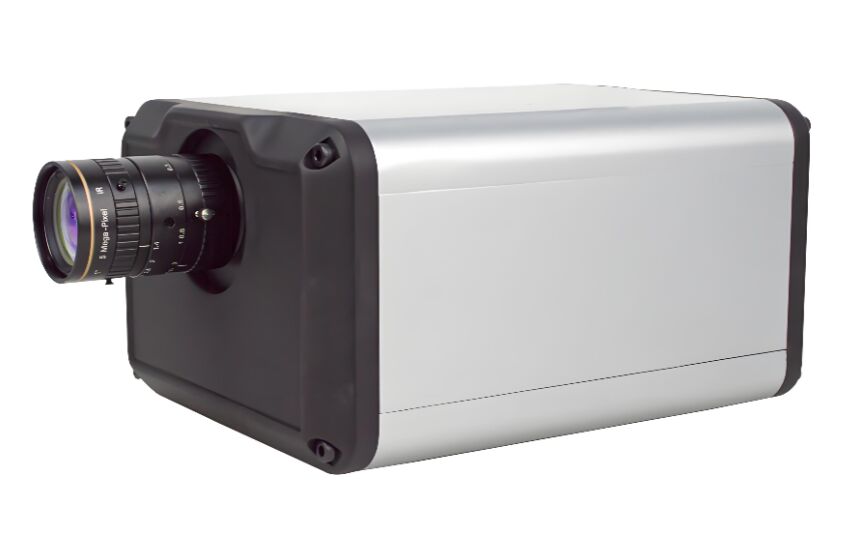

FS-27 imaging hyperspectral camera adopts transmission grating spectral module with high diffraction efficiency and high sensitivity surface array camera, combined with built-in scanning imaging and auxiliary camera technology, to solve the traditional hyperspectral camera needs external push-scan imaging mechanism and difficult to operate such as complex focusing. It can be directly integrated with the standard C inter-face imaging lens or microscope to achieve fast acquisition of spectral images.
| Spectral method: transmission grating | Image resolution: 1280*1280 |
| Spectral range: 900-1700nm | Imaging speed: 10 seconds |
| Spectral channel: 1024 | Slit width: 25unm |
| Spectral resolution: Better than 6.5nm | Camera interface: C-Mount |
Application fields
Parameters
| Model number | FS-27 |
| Spectroscopic method | Transmission grating |
| Image resolution | 1280 * 1280 |
| Dynamic range | 12 bits |
| Imaging speed | 10s |
| Spectral channel | 1024 |
| Spectral range | 900-1700nm |
| Spectral resolution (FWHM) | 6nm |
| Slit width | 25um |
| Transmission efficiency | > 60% |
| Stray light level | < 0.5% |
| Pixel size | 5um*5um |
| Sensor imaging surface dimensions | 9.6mm x 7.68mm |
| Standard lens focal length | 25mm |
| Minimum working distance | 150mm |
| Field Angle | 14.5 ° |
| Minimum exposure time | 1us |
| Maximum exposure time | Ten seconds |
| Signal-to-noise ratio | 600/1 |
| Data interface | start |
| Camera interface | C-Mount |
| attachment | USB3.0 transmission line |
| Imaging function |
Have ROI capability Multiple regional ROIs can be achieved |
| Auxiliary imaging function | Auxiliary view camera to realize the monitoring of the shooting area |
| Power supply mode | Built-in battery power |
| dimension | Length x width x height :24.8cm*14.5cm*14.5cm |
| weight | 2535g |
| Power dissipation | 50W |
